Case Studies / Vector Co., Ltd. (Veccl) - Development, Design and Sales of Marking Machine

"We want to engrave 30 letters on the cylinder block surface in 10 seconds!"

VM1250 Multi-stylus Pen Marking Machine, features fast operation with 4-styli pen.

The reduction of cycle time

Cylinder block / Cylinder case

"We want to engrave letters on two or more sections on the workpiece without noise!"

VM3730A Ultrasonic Pen Marking Machine, features wide marking area (100×100㎜) and silent operation.

Deep dot marking on mulltiple sections of workpiece and quiet production site.

Cylinder block / Cylinder head / Brake disc / Brake caliper

"We want to engrave letters on the turbine brade after it is painted!"

VM6040 Electromagnetic Pen Marking Machine, features 14 levels of marking (engraving) power.

Engraving deep dots on painted workpiece / Varied dot depth according to hardness of workpiece

Turbine brade / Bolt

"We want to engrave characters on wide area at a time!"

VM1210A Air Pen Marking Machine, features wide marking area (160×30mm).

Completion of engraving at a time without changing the position of workpiece

Brake / Window regulator

"We need a compact dot peen marker capable of engraving only 5 letters!"

VM2010 Air Pen Marking Machine, features light weight marking head (1.4kg) and enough marking area (50×20mm). The marking head can be used handheld by attaching an optional grip.

Handheld and portable use of marking head / Reduction of initial cost

Outboard motor / Screw

"We want to engrave 50×50 size letters as deep as possible!"

VM3770A High-power Pen Marking Machine, features wide marking area (100×100mm) and capable of deep marking.

Marking of big letter / Marking of long character string / Engraving deep dots

Body of heavy machinery / Cylinder block

"We want to engrave letters on rounded and harden surfaces of metal parts!"

VM3710A Air Pen Marking Machine, features the pen moving up and down according to the height of surface.

Engraving letters on rounded and harden surface of metal

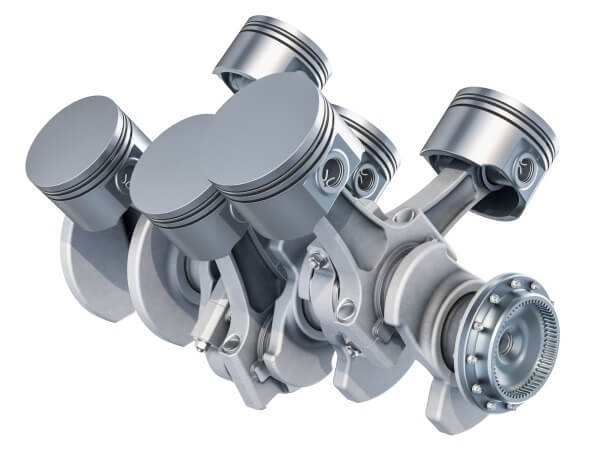

Crankshaft / Crankcase

"We need a compact dot peen marker capable of engraving 2D codes!"

VM2020 Air Pen Marking Machine. The marking head can be used handheld by attaching an optional grip.

Handheld and portable use of marking head

Die / Ingot / Billet

"In the production line, we want to engrave letters on the surface of medical tools without making burr!"

VM2030 Ultrasonic Pen Marking Machine, capable of engraving letters on metal surface without marking burr. Also, it features 3 levels of marking power.

Low noise operation / No discoloration (oxidation)

Scaipel / Scissors / Tweezers

"We want to engrave letters of thin lines! Also, we want to reduce noise during marking operation!"

VM7830B Ultrasonic Pen Marking Machine, features silent operation.

Low noise operation / Engraving thin lines

Copper foil on PCB
